※ FPD-0A04
| 产品型号 Model | FPD-0A04 |
| 动作方式 Action way | 先导式 Pilot type |
| 型式 Type | 常闭式 NC |
| 工作压力 Working pressure | 0.02Mpa-0.8Mpa |
| 进水口连接方式 Input connection way | 4分外螺 G1/2'' external threads |
| 出水口连接方式 Output connection way | 4分外螺 G1/2'' external threads |
| 使用介质 Applicable medium | 水 water |
| 阀体材质 Valve body material | 塑料阀体，铜接头 Plastic valve body copper joint |
| 介质温度 Medium temperature | 0-80℃ |
| 环境温度 Environment temperature | 0-50℃ |
| 额定电负荷 Electrical rating | AC220V,0.02A/ DC6V,0.6A/ DC9V,0.4A/ DC12V,0.3A/ DC24V,0.15A |
| 额定电负荷变化范围 Variable voltage of supply voltage | -10%~+10% |
| 绝缘电阻 Insulation resistance | DC500V兆欧表历时1min后绝缘电阻应≥100MΩ Tested by DC500V megohmmete for 1 min, the insulation resistance should ≥100MΩ |
| 水密性能 Watertigh performance | 静水压0.02Mpa,泄漏量＜0.1ml/min 静水压0.03-0.8Mpa,泄漏量0ml/min Hydrostatic pressure 0.02Mpa, leakage ratio ＜0.1mL/min, Hydrostatic pressure 0.03-0.8Mpa, leakage ratio 0 mL/min |
| 耐水压 Hydraulic pressure withstand | 静水压1.2Mpa,历时5min,无破裂、变形、外部漏； withstand hydrostatic pressure of 1. 2 Mpa for 5min, no unbroken, deformation or outside leakage |
| 可靠性 Reliability | 0.02-0.8Mpa,通、断各10S持续1h,单向止回阀不直通，无卡死等； 0.02-0.8Mpa, make and break for 10s respectively, lasting 1hr, the check valve should be unblocked |
| 流量特性 Flow characteristic | 压力0.02Mpa,流量3L/min,流量;压力0.1Mpa，流量8L/min;压力0.3Mpa,流量13L/min;压力0.8Mpa,流量25L/min Pressure 0.02Mpa, Flux 3L/min, Pressure 0.1Mpa, Flux 8L/min. Pressure 0.3pa, Flux 13L/min. Pressure 0.8Mpa, Flux 25L/min |
| 层间绝缘 Across layers insulation | 高压脉冲2S后应正常； Withstand high ovltage pulse for 2s, it should be normal |
| 连续通电 Continuously energized | 通电12H,不通水，阀体不变形，线圈不烧坏； Energize for 12hrs, but not connect through the water, the valve should be no deformation, and the coil should not be burned |
| 耐电压 Withstand voltage | 导电部分与外露非带电金属部分之间应能承受，AC1500V,50HZ,历时1min无闪络，不击穿；AC1800V,50HZ,历时1S无闪络，不击穿； The acceptable high-voltage power between electric conduction and outer without electrified metal withstand AC1500V 50HZ for 1min, no flashover or breakdown. withstand AC1800V, 50HZ for 1s, no flashover or breakdown |
| 止回功能 Non-return function | 有 Yes |
| 过滤功能 Filtering function | 带过滤网 with filter screen |
| 线圈与阀体角度 Angle between coil and valve body | 270° / 180° / 90° / 0° |
| 电源连接方式 Power supply connection way | M3螺丝固定 / 6.3插片 fixed with M3 screw / #6.3 bolt terminal |
| 使用寿命 Life Expectancy | ≥10万次 ≥100K cycles |
| 保证期限 Guarantee Period | 正常使用情况下，本公司的保证期限为12个月 Under the normal use conditions,the quality warranty period for our goods is 12 months |

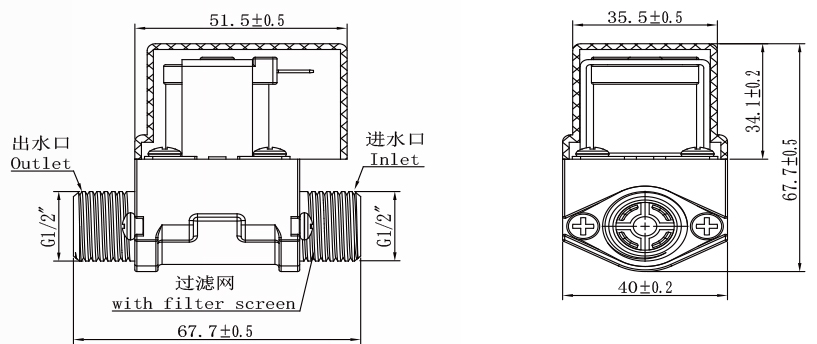

FPD-0A04
