※ SPECIFICATION
| Contact Rating | 50mA @ DC12V | |||
| Dielectric Strength | AC250V for 1 Minute | |||
| Contact Resistance | ≤100 mΩ Max. | |||
| Insulation Resistance | 100MΩ Min. | |||
| Life Expectancy | 100,000 cycles cycles | |||
| Travel | 0.35mm ± 0.1mm | |||
| IP GRADE | IP67 | |||
TSX08136
Swipe left and right more
※ TSX08136
Funtion: Momentary action
Contact Arrangement: SPST,Normally Open
Termination: THD version

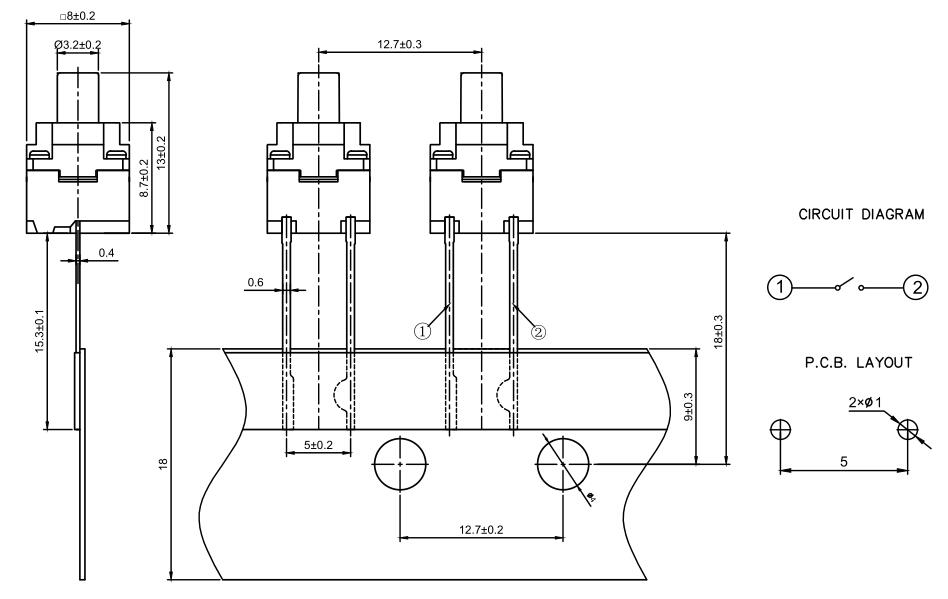

※ DIAGRAM
※ SPECIFICATION
| Contact Rating | 50mA @ DC12V | |||
| Dielectric Strength | AC250V for 1 Minute | |||
| Contact Resistance | ≤100 mΩ Max. | |||
| Insulation Resistance | 100MΩ Min. | |||
| Life Expectancy | 100,000 cycles cycles | |||
| Travel | 0.35mm ± 0.1mm | |||
| IP GRADE | IP67 | |||
