技术参数
| 产品型号 Model | FPD-090A07 |
| 动作方式 Action way | 先导式 Pilot |
| 型式 Type | 常闭式 NC |
| 工作压力 Working pressure | 0Mpa～0.06Mpa |
| 进水口连接方式 Input connection way | 4分外螺 G1/2'' external threads |
| 出水口连接方式 Output connection way | 4分外螺 G1/2'' external threads |
| 使用介质 Applicable medium | 水 water |
| 阀体材质 Valve body material | 塑料阀体 Plastic valve body |
| 介质温度 Medium temperature | 0-80℃ |
| 环境温度 Environment temperature | 0-50℃ |
| 额定电负荷 Electrical rating | AC220V,0.02A/ DC6V,0.6A/ DC9V,0.4A/ DC12V,0.3A/ DC24V,0.15A |
| 额定电负荷变化范围 Variable voltage of supply voltage | -10%~+10% |
| 绝缘电阻 Insulation resistance | ≥100MΩ |
| 水密性能 Watertigh performance | 静水压≤ 0.01Mpa,泄漏量＜0.1ml/min 静水压0.01-0.06Mpa,泄漏量0ml/min Hydrostatic pressure ≤ 0.01Mpa, leakage ratio ＜0.1mL/min, Hydrostatic pressure 0.01-0.06Mpa, leakage ratio 0 mL/min |
耐久性 Durability | 静水压 0-0.06Mpa范围内加额定电压连续开5s、关5s，动作10万次后无异常。 Hydrostatic pressure is from 0MPA to 0.06MPA, and in the rated voltage was continuously opened for 5s and closed for 5s. After 100,000 actions, there was no abnormality. |
| 可靠性 Reliability | 0-0.06Mpa,通、断各10S持续1h,单向止回阀不直通，无卡死等； 0-0.06Mpa, make and break for 10s respectively, lasting 1h,the check valve should be unblocked; |
| 流量特性 Flow characteristic | 压力0～0.06Mpa,流量1～3L/min,流量 Pressure 0～0.06Mpa, Flux 1～3L/min |
| 连续通电 Continuously energized | 通电12H,不通水，阀体不变形，线圈不烧坏； Energize for 12hrs, but not connect through the water, the valve should be no deformation, and the coil should not be burned |
| 耐电压 Withstand voltage | 导电部分与外露非带电金属部分之间应能承受，AC1500V,50HZ,历时1min无闪络，不击穿；AC1800V,50HZ,历时1S无闪络，不击穿； The acceptable high-voltage power between electric conduction and outer without electrified metal withstand AC1500V 50HZ for 1min, no flashover or breakdown. withstand AC1800V, 50HZ for 1s, no flashover or breakdown |
| 止回功能 Non-return function | 无 No |
| 过滤功能 Filtering function | 带过滤网 with filter screen |
| 电源连接方式 Power supply connection way | 6.3插片 6.3 fast-on tags |
| 使用寿命 Life Expectancy | ≥10万次 ≥100K cycles |
| 保证期限 Guarantee Period | 正常使用情况下，本公司的保证期限为12个月 Under the normal use conditions, the quality warranty period for our goods is 12 months |

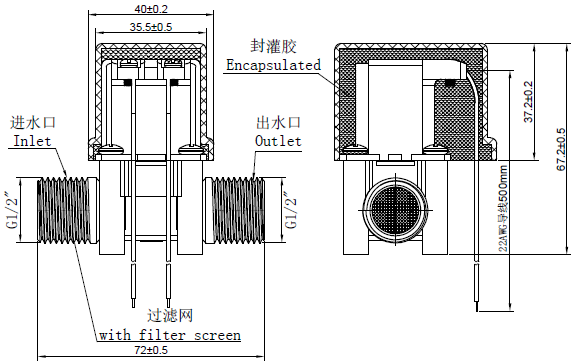

A07防水灌胶
