SPECIFICATION

ELECTRICAL RATING100mA , DC30V
CONTACT RESISTANCE≤100mΩ
INSULATION RESISTANCE≥100MΩ
DIELECTRIC STRENGTHAC500V for 1 Minute
LIFE EXPECTANCY
10,000 cycles



KAN1-24-J1

Swipe left and right more

KAN1-24-J1

Funtion:
Lock / Nonlock
Contact Arrangement:
DPDT
Termination:
THD version

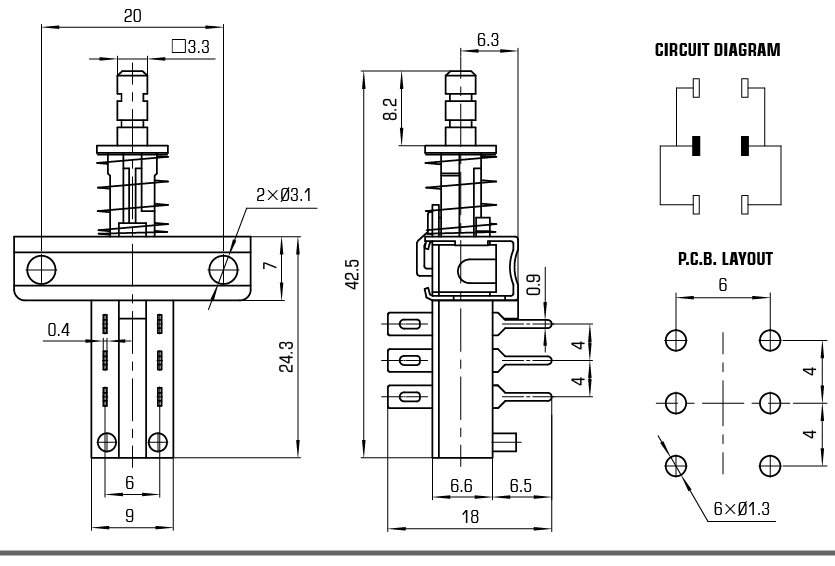

DIAGRAM


SPECIFICATION

ELECTRICAL RATING100mA , DC30V
CONTACT RESISTANCE≤100mΩ
INSULATION RESISTANCE≥100MΩ
DIELECTRIC STRENGTHAC500V for 1 Minute
LIFE EXPECTANCY
10,000 cycles
