※ SPECIFICATION
| ELECTRICAL RATING | 300mA , DC30V | |
| CONTACT RESISTANCE | ≤50mΩ | |
| INSULATION RESISTANCE | ≥500MΩ | |
| DIELECTRIC STRENGTH | AC500V for 1 Minute | |
| LIFE EXPECTANCY | 10,000 cycles | |
KAN3-22
Swipe left and right more
※ KAN3-22
| Funtion: | Lock / Nonlock |
| Contact Arrangement: | DPDT |
| Termination: | THD version |

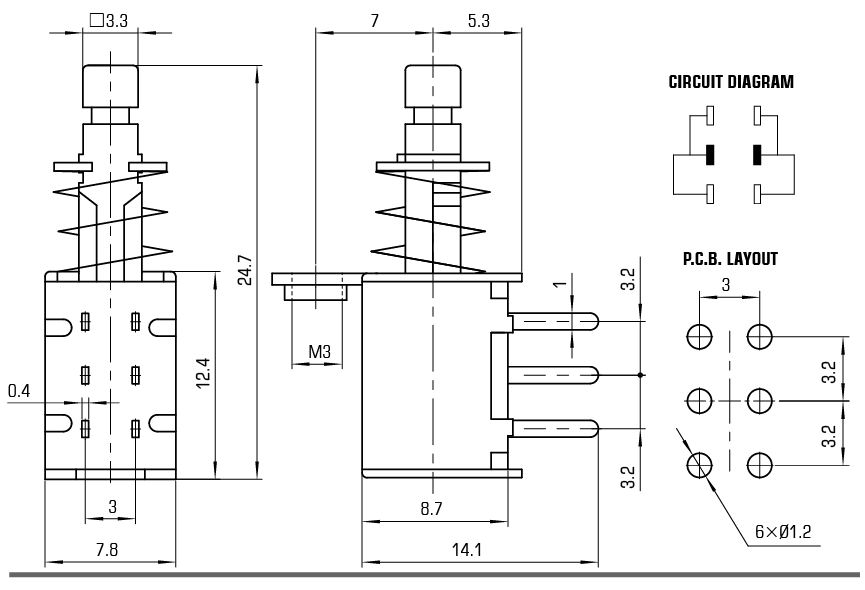

※ DIAGRAM
※ SPECIFICATION
| ELECTRICAL RATING | 300mA , DC30V | |
| CONTACT RESISTANCE | ≤50mΩ | |
| INSULATION RESISTANCE | ≥500MΩ | |
| DIELECTRIC STRENGTH | AC500V for 1 Minute | |
| LIFE EXPECTANCY | 10,000 cycles | |
