※ SPECIFICATION


ELECTRICAL RATING50mA , DC12V
CONTACT RESISTANCE≤100mΩ
INSULATION RESISTANCE≥100MΩ
DIELECTRIC STRENGTHAC500V for 1 Minute
LIFE EXPECTANCY
100,000 cycles
TRAVEL2mm±0.2mm


SS07

Swipe left and right more

※ SS07

Funtion:
ON-OFF
Contact Arrangement:
DPNT
Termination:
SMT version

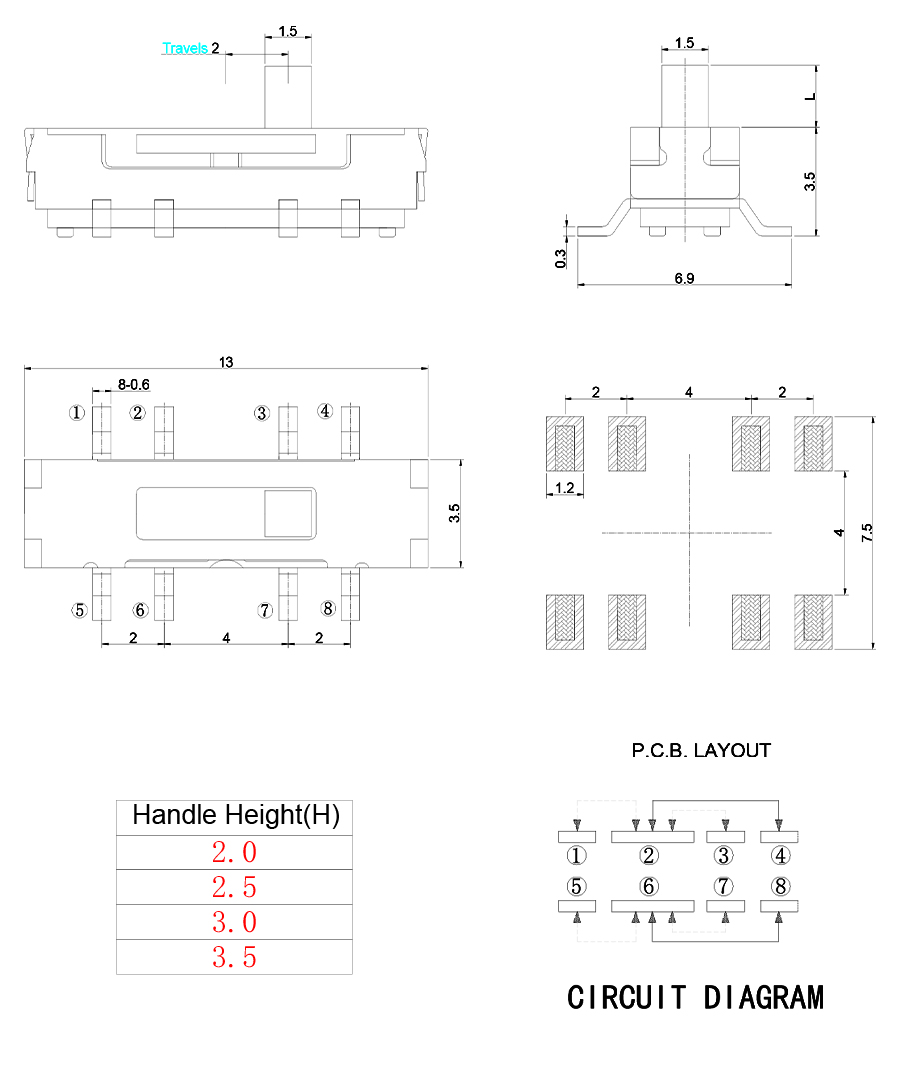

※ DIAGRAM



※ SPECIFICATION


ELECTRICAL RATING50mA , DC12V
CONTACT RESISTANCE≤100mΩ
INSULATION RESISTANCE≥100MΩ
DIELECTRIC STRENGTHAC500V for 1 Minute
LIFE EXPECTANCY
100,000 cycles
TRAVEL2mm±0.2mm
