※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 50,000 cycles | |
| TRAVEL | 0.25mm±0.1mm | |
| IP GRADE | IP66 | |
TSE05312
Swipe left and right more
※ TSE05312
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD version |

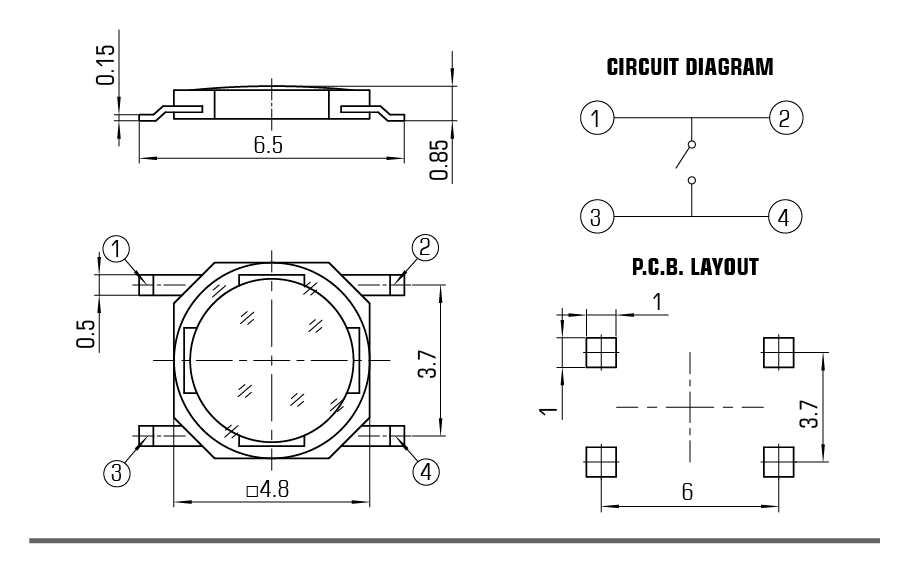

※ DIAGRAM
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 50,000 cycles | |
| TRAVEL | 0.25mm±0.1mm | |
| IP GRADE | IP66 | |
