※ SPECIFICATION
ELECTRICAL RATING | 50mA , DC12V | |
CONTACT RESISTANCE | ≤100mΩ | |
INSULATION RESISTANCE | ≥100MΩ | |
DIELECTRIC STRENGTH | AC250V for 1 Minute | |
LIFE EXPECTANCY | 30,000 cycles | |
TRAVEL | 0.25mm±0.1mm | |
IP GRADE | IP66 |
TSE36331
Swipe left and right more
※ TSE36331
Funtion: | Momentary action |
Contact Arrangement: | SPST, Normally Open |
Termination: | SMD version |

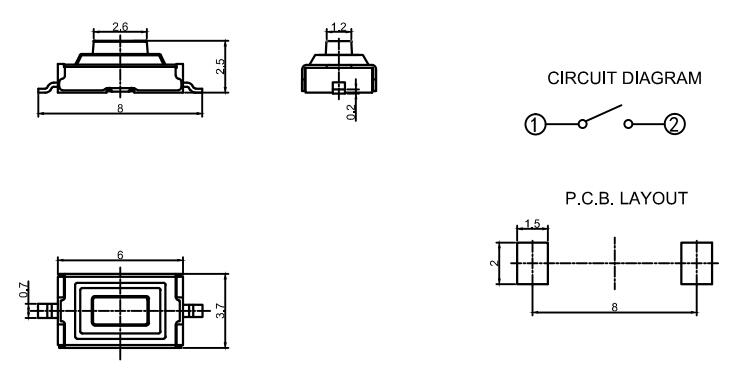

※ DIAGRAM
※ SPECIFICATION
ELECTRICAL RATING | 50mA , DC12V | |
CONTACT RESISTANCE | ≤100mΩ | |
INSULATION RESISTANCE | ≥100MΩ | |
DIELECTRIC STRENGTH | AC250V for 1 Minute | |
LIFE EXPECTANCY | 30,000 cycles | |
TRAVEL | 0.25mm±0.1mm | |
IP GRADE | IP66 |
