※ SPECIFICATION

ELECTRICAL RATING50mA , DC12V
CONTACT RESISTANCE≤100mΩ
INSULATION RESISTANCE≥100MΩ
DIELECTRIC STRENGTHAC250V for 1 Minute
LIFE EXPECTANCY
50,000 cycles
TRAVEL0.20mm±0.1mm
IP GRADE
IP66



TSE45311

Swipe left and right more

※ TSE45311

Funtion:
Momentary action
Contact Arrangement:
SPST, Normally Open
Termination:
SMD version

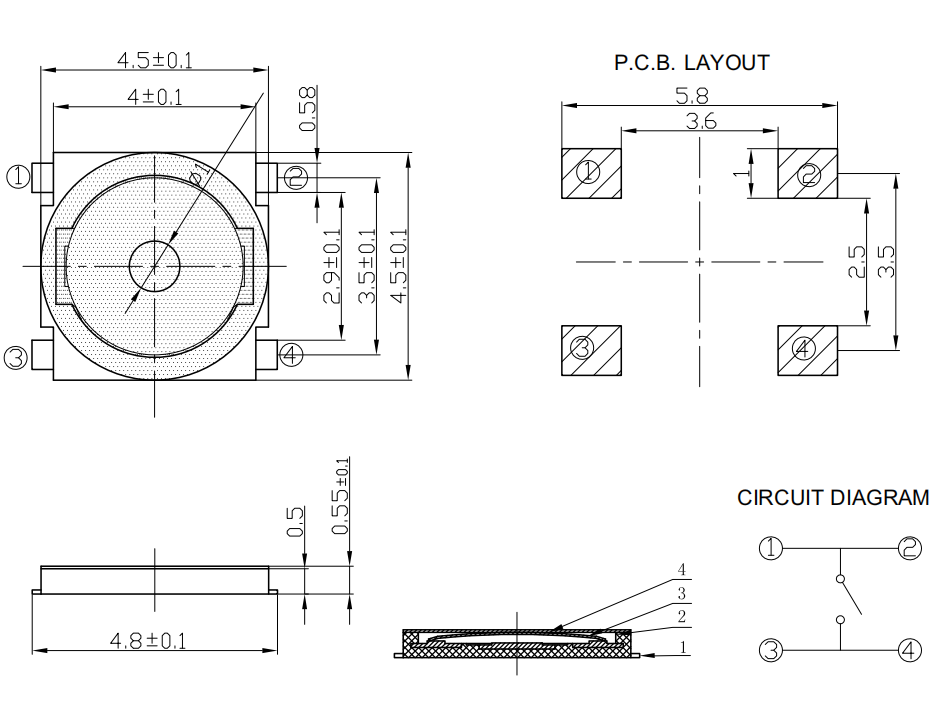

※ DIAGRAM






※ SPECIFICATION

ELECTRICAL RATING50mA , DC12V
CONTACT RESISTANCE≤100mΩ
INSULATION RESISTANCE≥100MΩ
DIELECTRIC STRENGTHAC250V for 1 Minute
LIFE EXPECTANCY
50,000 cycles
TRAVEL0.20mm±0.1mm
IP GRADE
IP66
