※ SPECIFICATION
ELECTRICAL RATING | 50mA , DC12V | |
CONTACT RESISTANCE | ≤50mΩ | |
INSULATION RESISTANCE | ≥100MΩ | |
DIELECTRIC STRENGTH | AC250V for 1 Minute | |
LIFE EXPECTANCY | 100,000 cycles | |
TRAVEL | 0.25mm±0.1mm | |
IP GRADE | IP67 |
TSW10111-0080
Swipe left and right more
※ TSW10111-0080
Funtion: | Momentary action |
Contact Arrangement: | SPST, Normally Open |
Termination: | THD version |

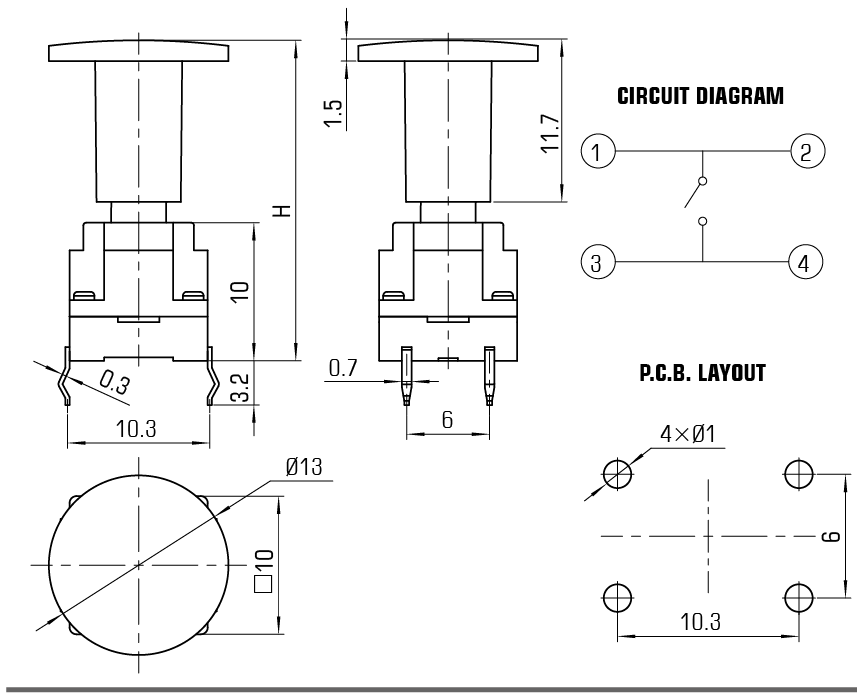

※ DIAGRAM
H | 21.2 | 23.2 | 31.4 |
※ SPECIFICATION
ELECTRICAL RATING | 50mA , DC12V | |
CONTACT RESISTANCE | ≤50mΩ | |
INSULATION RESISTANCE | ≥100MΩ | |
DIELECTRIC STRENGTH | AC250V for 1 Minute | |
LIFE EXPECTANCY | 100,000 cycles | |
TRAVEL | 0.25mm±0.1mm | |
IP GRADE | IP67 |
