※ SPECIFICATION

ELECTRICAL RATING50mA , DC12V
CONTACT RESISTANCE≤100mΩ
INSULATION RESISTANCE≥100MΩ
DIELECTRIC STRENGTHAC250V for 1 Minute
LIFE EXPECTANCY
100,000 cycles
TRAVEL0.3mm±0.1mm
IP GRADEIP67



TSX06353

Swipe left and right more

※ TSX06353

Funtion:
Momentary action
Contact Arrangement:
SPST, Normally Open
Termination:
THD version

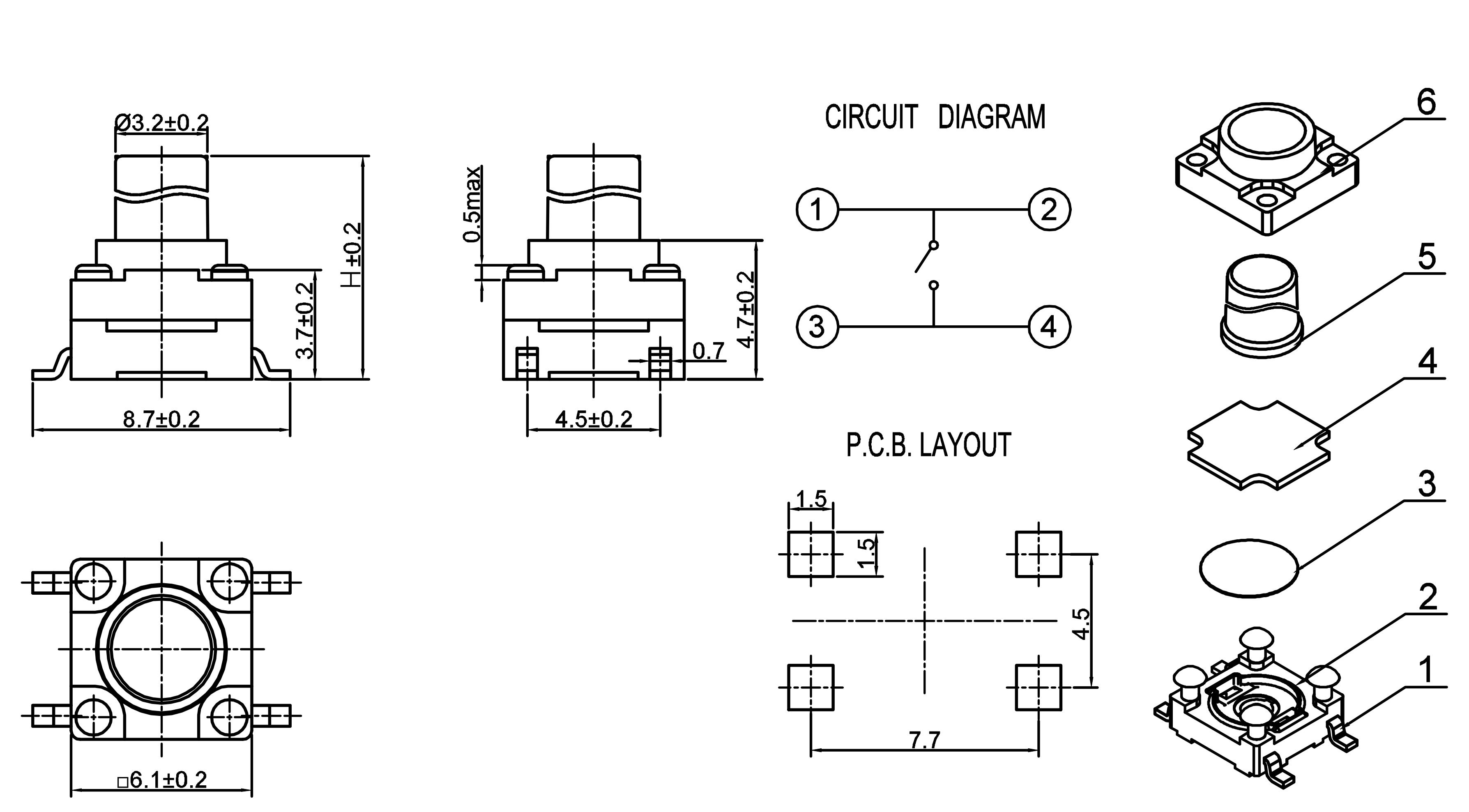

※ DIAGRAM




※ SPECIFICATION

ELECTRICAL RATING50mA , DC12V
CONTACT RESISTANCE≤100mΩ
INSULATION RESISTANCE≥100MΩ
DIELECTRIC STRENGTHAC250V for 1 Minute
LIFE EXPECTANCY
100,000 cycles
TRAVEL0.3mm±0.1mm
IP GRADEIP67
