※ 技术特性
| 额定电负荷 | 50mA,DC12V | |||
| 耐电压 | AC250V for 1 Minute | |||
| 接触电阻 | ≤100MΩ MAX | |||
| 绝缘电阻 | 100MΩ MIN | |||
| 寿命 | 100000 | |||
| 行程 | 0.25mm±0.1mm | |||
TSA06235
左右滑动查看详情
※ TSA06235

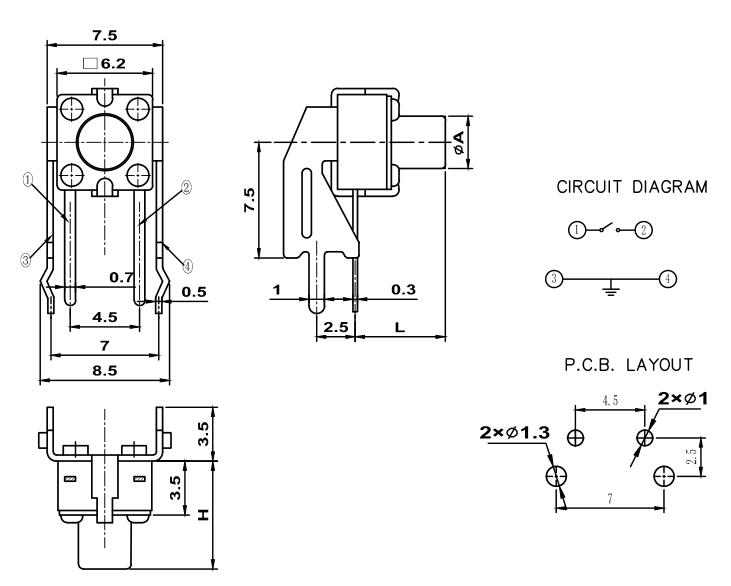

※ 尺寸图
| H | 4.3 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | 9 | 9.5 | 10 | 10.5 |
| A | 3.4 | 3.4 | 3.4 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.1 | 3.2 | 3.2 | 3 |
| L | 3.15 | 3.35 | 3.85 | 4.35 | 4.85 | 5.35 | 5.85 | 6.35 | 6.85 | 7.35 | 7.85 | 8.35 | 8.85 | 9.35 |
| H | 11 | 11.5 | 12 | 12.5 | 13 | 13.5 | 14 | 14.5 | 15 | 15.5 | 16 | 16.5 | 17 |
| A | 3.1 | 3.2 | 3.2 | 3.1 | 3.2 | 3 | 3.2 | 3.1 | 3.1 | 3.2 | 3.2 | 3.2 | 3.2 |
| L | 9.85 | 10.35 | 10.85 | 11.35 | 11.85 | 12.35 | 12.85 | 13.35 | 13.85 | 14.35 | 14.82 | 15.35 | 15.85 |
※ 技术特性
| 额定电负荷 | 50mA,DC12V | |||
| 耐电压 | AC250V for 1 Minute | |||
| 接触电阻 | ≤100MΩ MAX | |||
| 绝缘电阻 | 100MΩ MIN | |||
| 寿命 | 100000 | |||
| 行程 | 0.25mm±0.1mm | |||
