※ 技术特性
额定电负荷 | 50mA , DC12V |
接触电阻 | ≤50mΩ | ≤100mΩ
|
绝缘电阻 | ≥100MΩ |
绝缘强度 | AC250V for 1 Minute |
寿命
| 100,000
|
TSR06631
左右滑动查看详情
※ TSR06631
工作方式:
| 瞬时接触 |
接触方式:
| 单刀单掷,常开
|
安装方式:
| 直立贴片
|

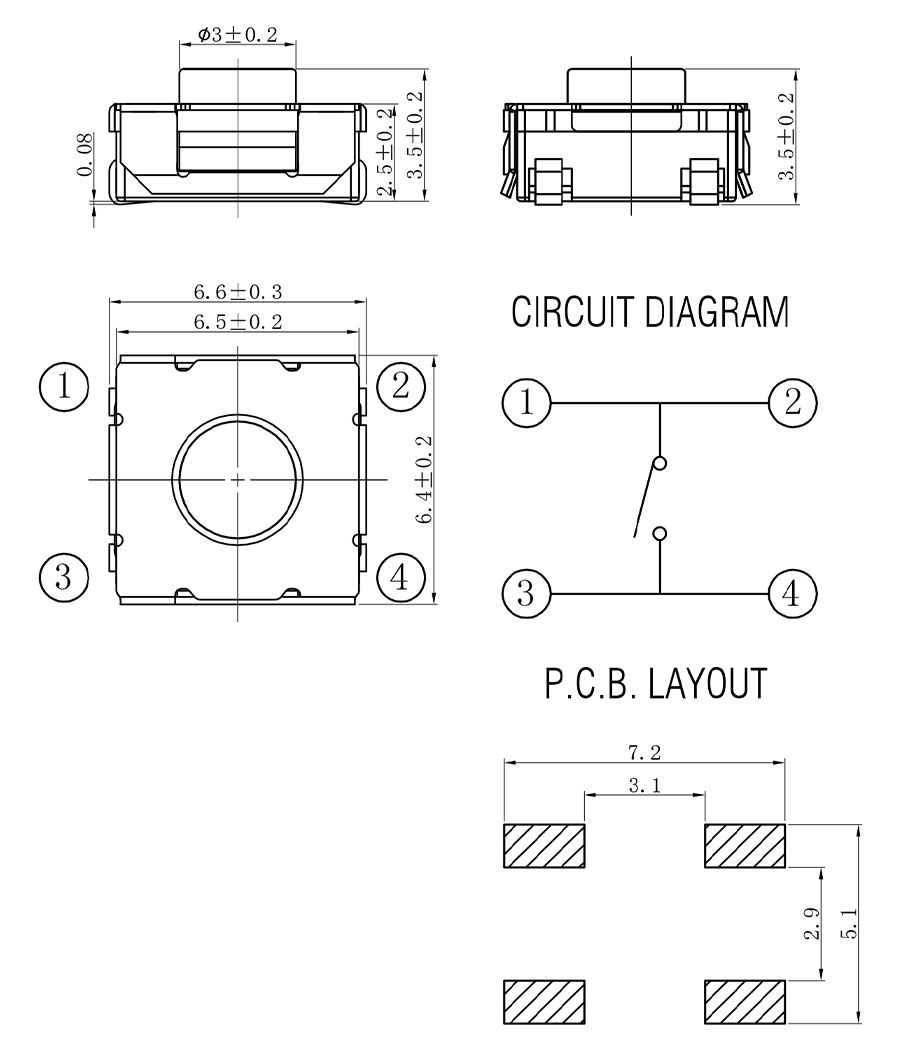

※ 尺寸图
※ 技术特性
额定电负荷 | 50mA , DC12V |
接触电阻 | ≤50mΩ | ≤100mΩ
|
绝缘电阻 | ≥100MΩ |
绝缘强度 | AC250V for 1 Minute |
寿命
| 100,000
|
